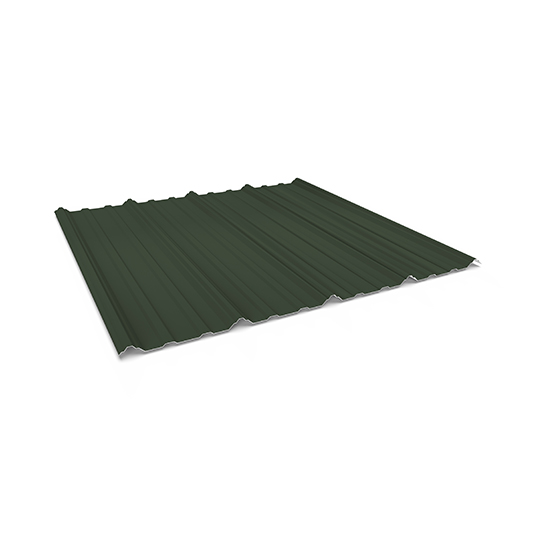

Multi-Rib Panel
THRU FASTENED PANEL
The Multi-Rib panel can be installed in a wide range of commercial and residential applications. The panel is a multi-use roof and wall panel that is secured with fasteners through the panel.
Available Materials: Galvalume (26, 29 gauge)
Available Widths: 36"
Substrate Requirements: Can be installed over Solid Substrate or on Open Framing.
Minimum Roof Pitch: 3:12
Recommendation: Solid Substrate requires 30# Felt, Ice & Water Shield or Synthetic Underlayment.
Finish: Siliconized Polyester (40 year finish warranty)
Finish Warranties:
40 Year Siliconized Polyester
Available Colors
Residential Colors
Polar White
Charcoal Gray
Light Stone
Burnished Slate
Sahara Tan
Forest Green
Patina Green
Ash Gray
Gallery Blue
Hawaiian Blue
Cocoa Brown
Burgundy
Country Red
Brite Red
Coal Black
Non-Painted Acrylic Coated Galvalume
